Junkbox 18x7x7 CNC mill

News  Data  Photos

This page is dedicated to the design and build progress of my "Junkbox" CNC mill. Final work envelope will be 18"x7"x7" max with some limitations on the reach in the Z axis. Final plan also includes a 4th axis to drive a rotary table.


News
??NOV10 Started the initial sketches and design.
29DEC10 Started the build log over on CNCzone
 17AUG12 Created this page (finally)

Data
The bulk of the project is documented in this thread over at CNCzone. Since there is not much point on duplicating things in 2 places please check out that thread for more info and pictures.

Photos

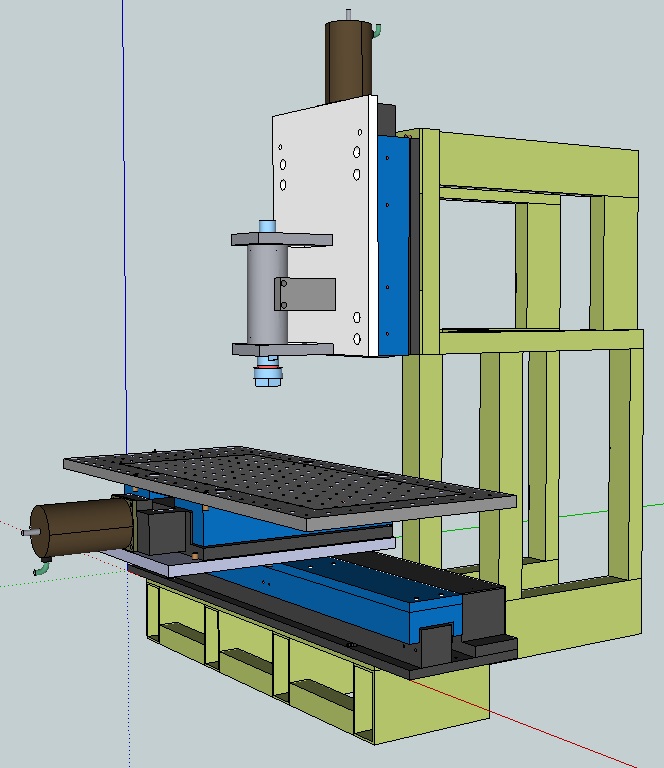

Sketchup drawing of final machine

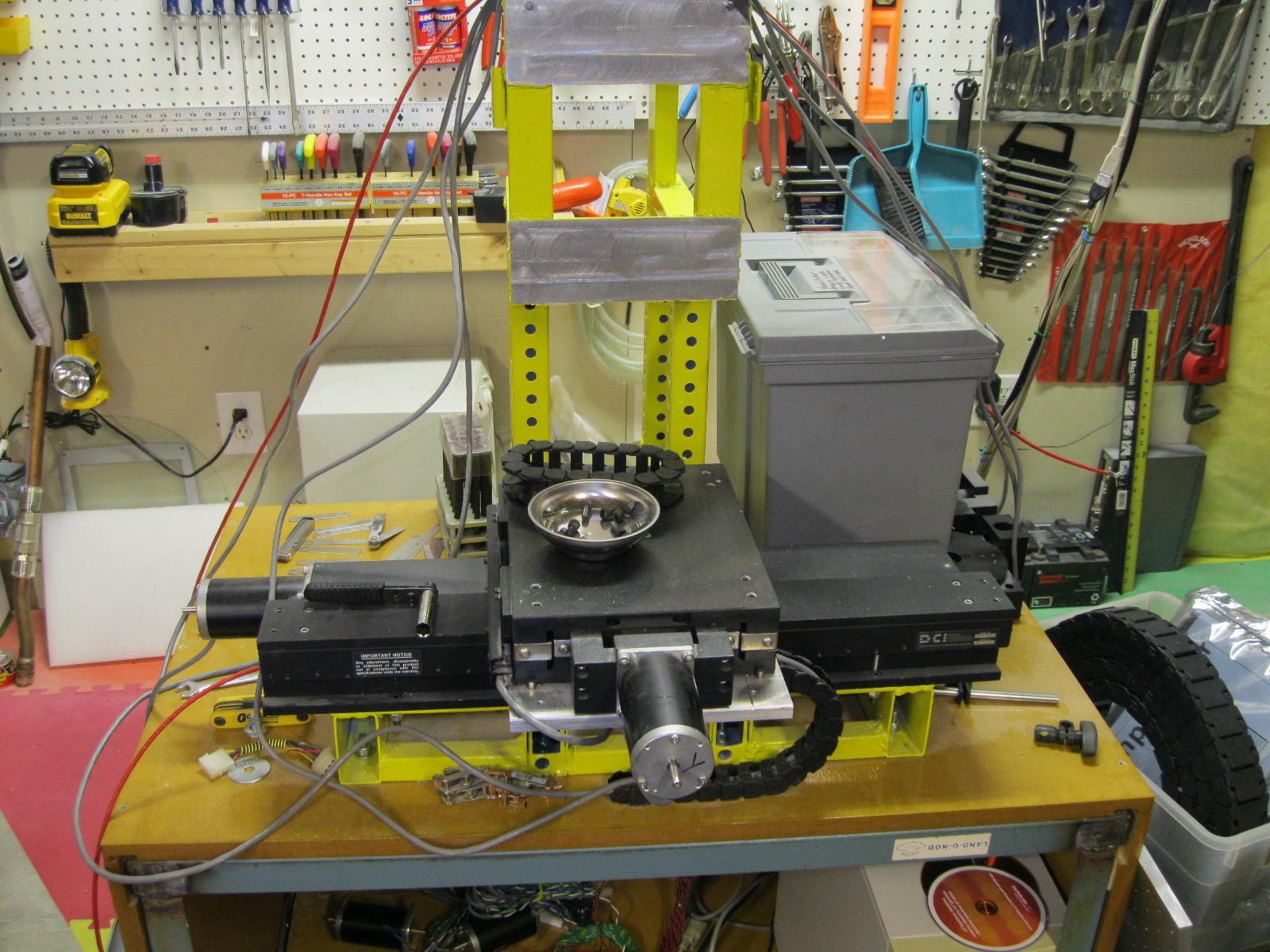

Mill as it sits in Aug2012
Click to enlarge
